Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately

Brand Name : HUATEC

Model Number : HT1806

Certification : ISO, CE, GOST

Place of Origin : Beijing

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 500pcs per month

6 film Widths are available : 50/150/250/300 mm

Precision : ±2μm

Film thickness range : 0-3500μm

MOQ : 1pcs

Packaging Details : Standard export package

Delivery Time : 1-4days

Contact Now

Product Introduction:

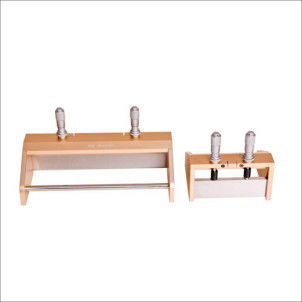

Adjustable Applicator is applied to evaluate the slight difference of the film thickness accurately. It can control the film thickness by adjusting the two differentiators and scraper. And the gap is the final thickness.

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately

Adjustable Applicator For Evaluate The Slight Difference Of The Film Thickness Accurately

Introduction:

Adjustable Applicator is applied to evaluate the slight difference of the film thickness accurately. It can control the film thickness by adjusting the two differentiators and scraper. And the gap is the final thickness.

Technical Specification:

◆Stainless steel-wear resistance
◆6 film Widths are available:
50/150/250/300 mm
◆Precision: ±2μm
◆Film thickness range: 0-3500μm
◆In 10 μm increment

Order Information:

1806/50 Adjustable Applicator 50 mm Width
1806/150 Adjustable Applicator 150 mm Width
1806/250 Adjustable Applicator 250 mm Width
1806/300 Adjustable Applicator 300 mm Width

Other width and gap size are available upon request.

In order to facilitate the rapid application of wet film and quick cleaning after use, developed two new models of adjustable film applicator.
1806/A: Diversion baffle make the operation more convenient.
Smart magnetical design for quick cleaning after use.

Order Information:

1806A/50 50mm Width
1806A/100 100mm Width
1806A/150 150mm Width
1806A/200 200mm Width
1806A/250 250mm Width
1806A/300 300mm Width

Other width and gap size are available upon request.

1806/B: Smart magnetical design for quick cleaning after use.

1806B/50 50mm Width
1806B/100 100mm Width
1806B/150 150mm Width
1806B/200 200mm Width
1806B/250 250mm Width
1806B/300 300mm Width

Other width and gap size are available upon request.
